Led Solar Traffic Light is a light and color signal that alternately changes at a specified time. It is usually set at intersections or other special places to assign the right of way to vehicle drivers and pedestrians, and to control the traffic control of their stopping and turning. facility. Set up at forks or other necessary locations. With the development of technology, there are more and more settings of LED Solar Traffic Light. Let's talk about the rules for the installation of LED Solar Traffic Light:
Three-light three-color single-group motor vehicle signal lights arrangement sequence
1) When installed vertically, the color of the traffic lights should be red, yellow and green from top to bottom.
2) When installed horizontally, the color of the traffic lights should be: red, yellow, green from left to right.

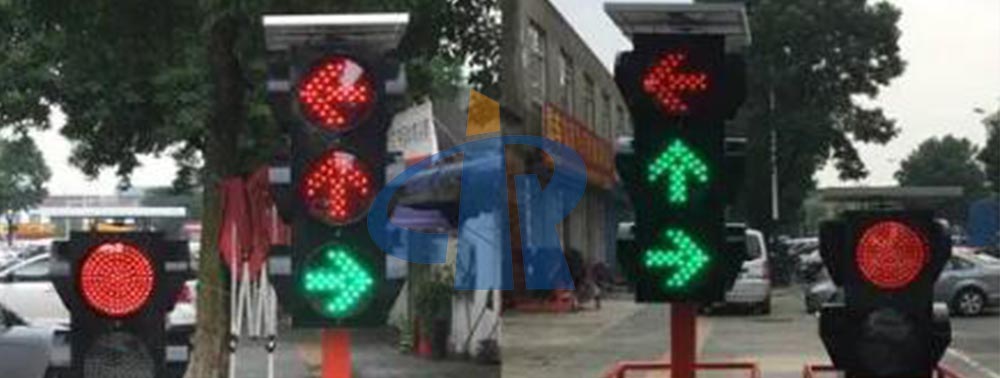

Three lights three colors single group direction Solar Traffic Light arrangement order
Three-light three-color single-group direction Solar Traffic Light is divided into three directions: left, straight and right according to the indicated direction.
1) When a single group is installed vertically, the direction of the Solar Traffic Light should be red, yellow and green from top to bottom.
2) When installed horizontally, the color of the direction Solar Traffic Light should be: red, yellow, green from left to right.
Three lights, three colors, one set of directions, Solar Traffic Light, generally, there are three sets of left, straight and right traffic lights, or two sets of left and straight traffic lights, which are cantilevered. The roadway is installed vertically or horizontally from left to right according to left, straight and right.
A single group of signal lights composed of red and yellow motor vehicles and left, straight (, right) directions Solar Traffic Light
1) When a single group is installed vertically, the light colors from top to bottom should be: red, yellow, left, straight (, right).
2) When a single group is installed horizontally, the light colors from left to right should be: red, yellow, left, straight, right.
The order of light color of non-motor vehicle signal lights
When the direction Solar Traffic Light is not used, the traffic lights are installed vertically, and the color sequence of the non-motor vehicle signal lights should be red, yellow, and green from top to bottom.
When using the direction of Solar Traffic Light and it is a set of lights, the vertical installation from top to bottom is red, yellow and green non-motor vehicle lights, and the left and right direction indicators; Down is red, yellow and green, the right group is the direction indicator, and from top to bottom is the Solar Traffic Light from left to right.
1) The order of the light colors of the pedestrian crossing lights
2) Pedestrian crossing lights should be installed vertically, and the color order of the lights is upper red and lower green.
