When the road markings cannot fully express the road traffic rules and can not play a good role in guiding the flow of traffic, the markings can be used with
Road Studs to manage and limit the traffic flow, then how to use
Road Studs auxiliary with the markings?

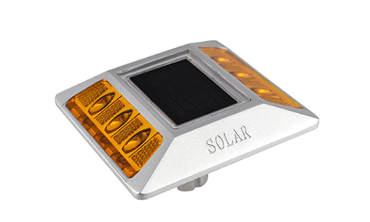

Road Studs is a kind of traffic safety facility, which is mainly installed in the middle of the road marking or the middle of the double yellow line, and reminds the driver to drive in the lane through its retroreflective performance.
1. When
Solar Road Studs are used together with markings, the retro-reflective type should be selected, and the color should be consistent with the color of the markings. The white
Solar Road Studs are used to separate the traffic flow in the same direction, and the yellow
Solar Road Studs are set on the center line of the road to separate the traffic flow in the opposite direction.
2. When Solar Studs is used with the dotted line, it is generally set in the neutral position of the marking line. When
Solar Studs are used with the edge line or the center single solid line, they are generally set on one side of the marking line.
3. When
Solar Studs are used in conjunction with entrance and exit ramp markings, diversion markings, road narrowing markings, road obstacle markings, etc., they should be laid out according to the actual line shape to ensure a clear outline at night and clearly visible.
Set size:
The maximum spacing is 26m, and it is applied to 13m line length (5m line length, 8m spacing);
The maximum distance is 18m, which is applied to 9m line length (3m line length, 6m spacing);
13m spacing for left-turn lanes;
These aspects can be referred to when performing auxiliary matching markings on
Solar Studs.
So how are the road Solar Studs and traffic markings maintained?
The main purpose of the maintenance of highway traffic markings is to keep the colors of various traffic markings and markings bright and eye-catching, and to ensure their normal use functions.
Maintenance of
Road Studs:
1. The main maintenance content of Road Studs is to maintain its reflective performance. The debris around the protruding parts should be cleaned frequently, and the dirt on the surface of the reflective glass ball should be removed.
2. The main repair content of
Road Studs is to maintain a good reflection angle. If it is found to be loose, it should be fixed; if it is found to be damaged or lost, it should be repaired or replaced in time.
Maintenance of road markings, guide arrows, and text marks:
1. If the reflective rectangular color block is peeled off, it should be subsidized in time.
2. Remove the weeds, trees and objects marked with dirty surfaces and obscuring contour marks.
3. If the paint peels off, it should be repainted.
4. The Road Studs signs should be straightened and fixed if they are inclined or loose. If it is deformed or damaged, it should be repaired or replaced as soon as possible.
5. Lost should be supplemented in time.
Maintenance of facade signs:
The main content of facade sign maintenance is to remove the surface contamination. If the color has faded or the paint has peeled off, it should be repainted in time.
