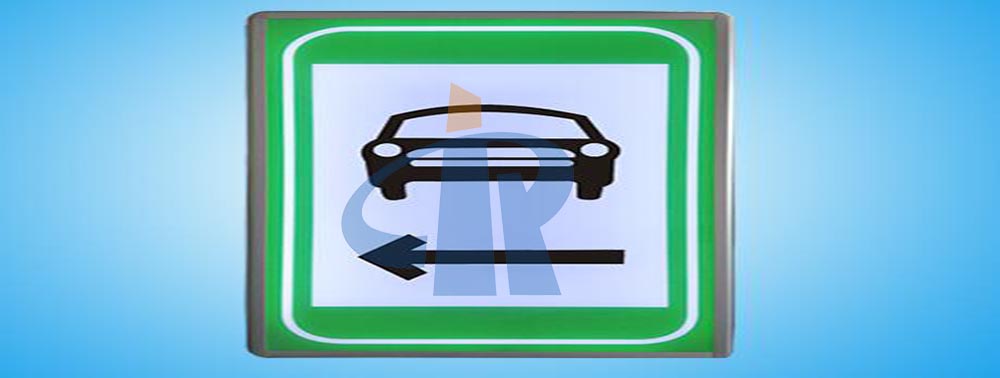

Four. Tunnel Traffic Hengdong
Solar Traffic Signs
It is used to indicate the location of the cross hole of the tunnel, and instruct the vehicle to divert to the cross hole in the event of an emergency in the tunnel. The sign of the car dealer's cross hole should be an electro-optical sign, the lighting method is internal lighting, and it is displayed on one side.
1. The layout of Solar Traffic Signs is generally 50cm×80cm, which can be adjusted according to the design clearance of the tunnel.
2 .
Solar Traffic Signs logo color is a green pattern on a white background.
3. It is installed about 10m in front of the left side hole of the vehicle in the driving direction, and the installation height clearance is not less than 2.5m.

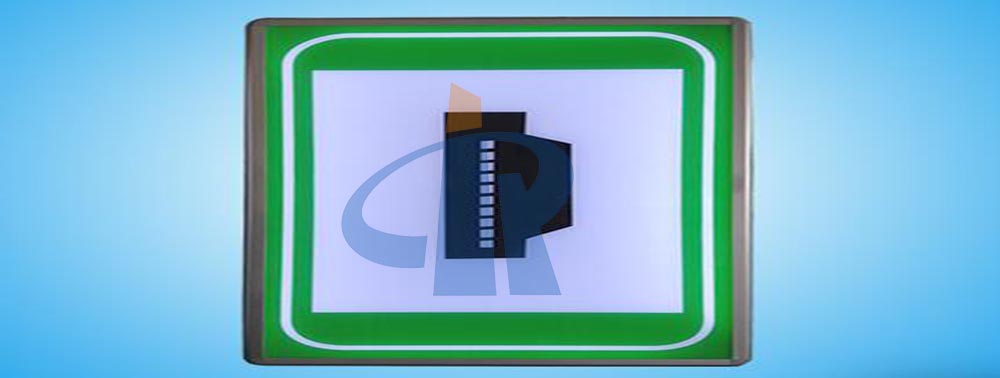

five. Tunnel Emergency Stop
Solar Traffic Signs
Used to indicate the location of the emergency stop belt in the tunnel. The emergency stop belt signs should be electro-optical signs, and the lighting method is internal lighting and single-sided display.
1. The layout of
Solar Traffic Signs is generally 50cm×80cm, which can be adjusted according to the design clearance of the tunnel.
2. The color of the logo symbol adopts a green pattern on a white background.
3. It is installed about 5m in front of the emergency stop belt, and the installation height clearance is not less than 2.5m.

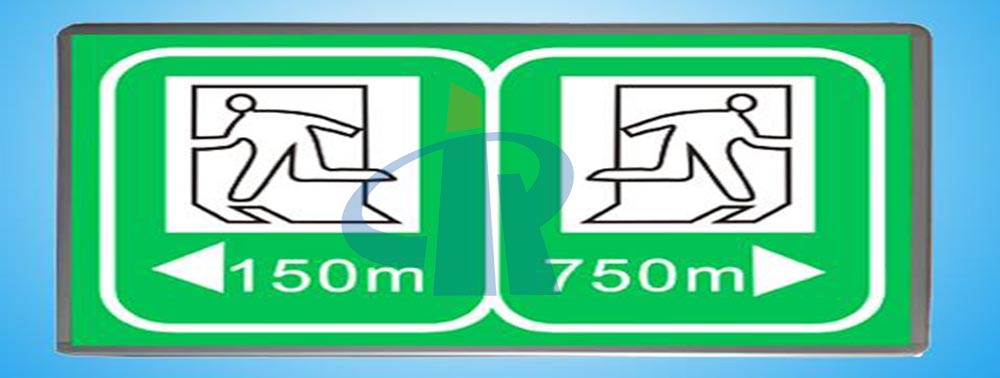

six. Tunnel Evacuation Signs
Solar Traffic Signs
It is used to indicate the distance and direction of the point and the entrance, pedestrian crossing, and vehicle crossing. In the event of an emergency in the tunnel, it is used to instruct pedestrians and vehicles to leave quickly.
Solar Traffic Signs should be used for evacuation signs, with internal lighting and single-sided display.
1. The layout of the logo is generally 25cm×40cm, which can be adjusted according to the design clearance of the tunnel.
2. Set on the side wall of the tunnel, the installation height clearance is not less than 2m, and the spacing is not more than 50m.
